Root Moto G23 Android 14 using Magisk

The Moto G23, running on Android 14, offers impressive performance straight out of the Box, catering to the needs of most users without requiring root access. However, for developers and power users seeking to unlock the full potential of their devices, rooting can provide access to a plethora of customization options and advanced features. Magisk, a popular root solution, offers a seamless and reversible method to achieve root access without compromising the integrity of the device’s software. By rooting your Moto G23 using Magisk, you can install root-specific apps, modify system settings, and optimize performance according to your preferences. Below, we’ll outline a straightforward method to root your device, ensuring you can harness its capabilities to the fullest.

After rooting, you will lose official updates and update your mobile manually. So, Before proceeding with the process, you should know why you need to do it. If you are a regular user, you can try some alternatives for your purpose that don’t require rooting your mobile. As a regular Root apps user and developer, you can follow the guide below to achieve Root on your mobile.

Should you need Root Moto G23 Android 14?

We thank XDA Developer- topjohnwu and gost_Nava (Who successfully tested this method). Without their hard work, we couldn’t have created this method. Coming to the Root, you should have a proper reason and know what you are doing. Yes, with a miRootm of 8-12 GB RAM and a MediaTek Dimensity 7030 processor, You can use this mobile for basic tasks without Root for 2-3 Years if you use it correctly. Software is better compared with other manufacturers, Custom skin OS. Don’t root because everybody says it can become the fastest car in the world when you root your mobile. No. Rooting is to extract some performance from the device. But you already have Powerful specs and software. So, If you are addicted to some root apps, you can root. But if you want to test it, I won’t recommend it.

How to Root Moto G23 Android 14 version (International Variants)?

Moto G23 International Variants has a flexible bootloader other than some carrier-locked devices, so we can easily root different smartphone variants. The device can also install TWRP recovery or any custom recovery file/app.

For most of the methods, We follow Magisk to root our device. However, the tool required for rooting this device is the Magisk App. TWRP recovery is a custom file we must install on your devices because you can embed them successfully. This article explained the easiest method to follow and install Magisk on Moto G23.

You can install TWRP Recovery to gain Custom Recovery access once your Moto G23 is available. Before sharing the tutorial, you may want to know that, without the TWRP recovery present on your device, you can not install any custom ROM or firmware. Does it seem complicated? Relax; we will explain everything briefly in bullet points.

Things to check out for;

• Make sure your device’s battery is above 50%.

• You should back up your current files and data and the entire data loss process (save them on external storage).

Pre-Requirement Steps

• Enable USB Debugging Mode and OEM Unlock on your mobile. To do this, go to settings >>> about >>> Tap on the “Build Number” 7-10 times consistently to enable “Developer Options,” then go to the “Developer Options” and enable USB Debugging Mode, OEM Unlock. There is no complicated process in Moto G23.

• Download and install the Moto USB driver to your computer system.

• Also, download the ADB drivers. Install it on your PC.

Unlock the Moto G23 bootloader using ADB and Fastboot

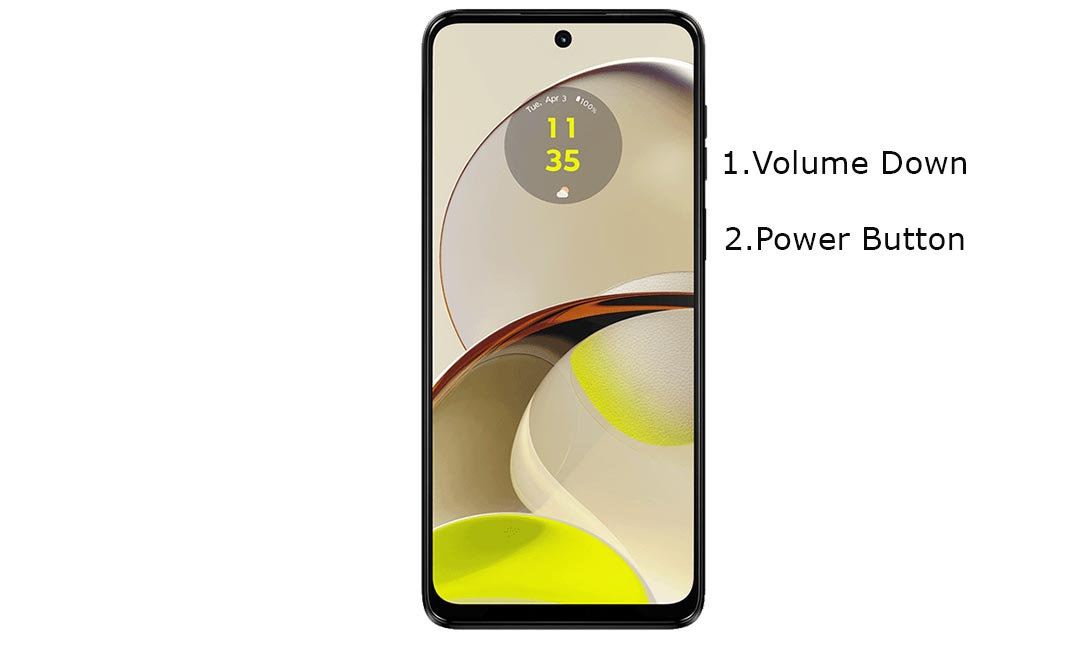

• Switch off your device. Then, enter Fastboot mode. To do this- Press and hold down the Volume Down + Power buttons simultaneously for some time.

• Press the Volume Up button to continue when you see the warning message.

• Connect the Moto G23 mobile to the computer via a USB cable.

• Launch the fastboot on your computer. Open a command prompt on your PC and type the command below.

• fastboot devices

• It should display the connected devices. If you don’t get the device, restart the command prompt and disconnect and connect your Moto G23; if you are detected, type the commands below.

• fastboot oem get_unlock_data

• Hit enter, and you will get some unlock data. Copy those codes, remove < bootloader> Prefix from those lines, and copy them into one line.

• If the above command doesn’t work, type the below command and enter.

• fastboot flashing unlock

• Go to the Official Moto Unlock Page. Log in with your Moto account and in the Box, paste those codes, and Check the unlock Bootloader Status. You can open it and request an unlock Key from Moto if you get it.

• After the process, you will get 20 Digits to unlock the key in your email. Now, type the following command to unlock the bootloader on your device.

• fastboot oem unlock UNIQUE CODE

• You should type this code two times and Hit enter to unlock your device successfully. After the successful unlock, your device will automatically reboot to the standard OS.

• Check again to enable “Developer Options,” then go to the “Developer Options” and enable USB Debugging Mode, OEM Unlock. Sometimes, they disabled themselves after the boot.

Preparing Patched Boot Image file

• Download Moto G23 Firmware and save it on your PC. Your Current OS version and Downloaded Version should be the Same.

• You can use Phone Info to know your firmware version.

• Download 7Zip-ZS Install on your PC. Extract the files in the downloaded firmware using 7Zip-ZS. You will get a lot of data. Copy boot.img file to your mobile.

• Download Magisk Manager (Download the latest version) or Magisk Canary and install it on your mobile device. Open Installed Magisk and Select Install in Magisk; ask For a zip file and Patch Recovery Image File. Select the boot image file.

• Navigate to your copied boot image file and patch the file to .img format.

• Wait for the process to complete; you will get a magisk patched .img file. The .img file will be in the same folder where you have the boot. img.

• Copy the magisk_patched.img file to your PC. Rename the file to boot.img again.

Flash Patched Boot Image in Moto G23 using ADB and Fastboot

• Switch off your device. Then, enter into fastboot mode. To do this- Press and hold down the Volume Down + Power buttons simultaneously for some time.

• Press the Volume Up button to continue when you see the warning message.

• Connect the Moto G23 mobile to the computer via a USB cable.

• Launch the fastboot on your computer. Open a command prompt on your PC and type the command below.

• fastboot devices

• It should display the connected devices. If you don’t get the device, restart the command prompt, disconnect, and connect your Moto G23. If you are detected, type the below command and hit Enter.

• fastboot flash boot_a patched_boot.img
  fastboot flash boot_b patched_boot.img

• After completing the process, Press the Volume Down+ Power button to exit Fastboot mode. Immediately Press the Volume Up + Power buttons when the screen goes off to boot into Recovery mode.

• After entering Stock recovery mode, Go to Wipe Data/Factory Reset and Select Yes to wipe data. It will erase the saved data on your device. Don’t Boot into OS; read below Boot stages before booting.

Boot into Rooted OS

• Press and Hold the Volume Up + Power buttons, and release all the keys once the Bootloader warning appears. You have to set up your device like a new device. You can select the root status using the Root Checker.

• Stock Recovery Boot – Press and Hold the Volume Up + Power buttons and release keys while you hold the Volume Up key.

• You will see Magisk Manager in your App drawer. You can install Magisk Manager on your mobile if you can’t find the app.
